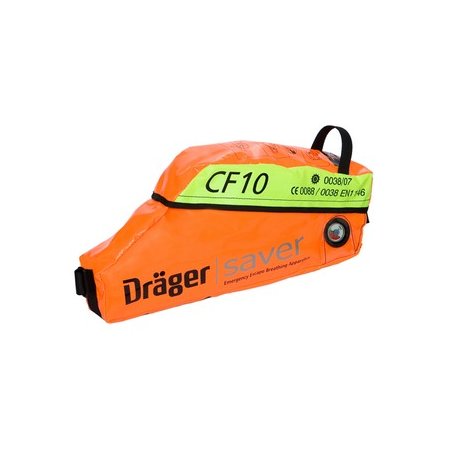

Drager CF10 Escape set

Category: Escape Sets

read reviews (no rating information)

Number of items in stock: 996




Price: £285.00


The Dräger Saver CF is equipped with a hood which means it can be easily worn by any user in an emergency, even relatively untrained individuals or people with beards or spectacles. The integrated neck collar ensures a tight seal preventing ingress of any smoke or harmful gases into the hood.

Automatic start
The Dräger Saver CF unit is activated automatically when the carrying bag is opened. Simply donning the hood will start the constant flow of breathable air to the wearer.

Complete head protection
The hood itself means the wearer is completely protected from the neck up from the effects of heat, smoke or harmful gases.

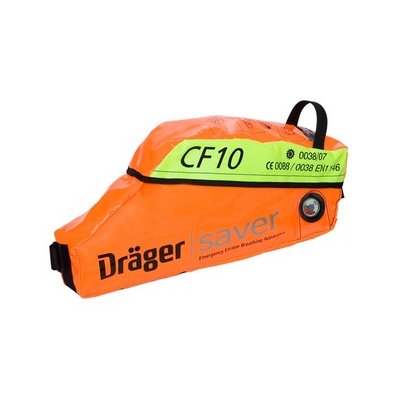

Image 1 of 2.

Secure Controls
A clearly audible acoustic signal will sound when the supply of breathable air has been used up.

Dräger Saver CF
The Dräger Saver range of Emergency Escape Breathing Apparatus has been designed using the latest technologiesavailable whilst still bearing in mind our three leading principles; reliability, quality and ease of use.

The Dräger Saver CF constant flow emergency escape breathing apparatus allows safe, effective and uncomplicated escape from hazardous environments with the minimum of user training. Developed with the user in mind the Dräger Saver CF can be used by anyone in an emergency escape situation, especially designed to be as easy to don as is possible, regardless of face shape or size and is suitable for users with glasses or facial hair.

The Dräger Saver CF is extremely compact in design providing greater freedom of movement and ease of storage. Designed to be quick and simple to use making escape as uncomplicated as possible. The easy to don flame retardant hood incorporates a wide visor for enhanced peripheral vision. The natural rubber neck seal is ozone resistant ensuring high levels of protection, and long life, even after storage.

The unit is automatically activated on opening the carrying bag and can be simply reset in the event of false alarm.

To ensure the unit is working as you need it when you need it, regular checks are recommended. The cylinder contents gauge is clearly visible without any  dismantling or adjustments to the unit due to a transparent viewing window located on the side of the bag. This allows for quick and simple cylinder contents inspection.

During an escape situation a warning whistle sounds when the unit is nearing the end of its air supply, this is to help ensure the user knows when they need to be in a safe breathing environment.

The unit is contained in an instantly recognizable high visibility orange carrying bag, incorporating photo luminescent panels allowing the unit to be seen at very low ambient light and visibility levels.

The carrying bag is interchangeable for either chest bag or bandolier positions, washable, flame retardant and allows water to self-drain.

The Dräger Saver CF utilizes a simple fail-safe reducer system with excellent flow characteristics giving a consistent air flow rate at all cylinder pressure levels.

The combined diffuser and exhalation valve account for excellent air supply combined with a very streamlined hood profile.

The Dräger Saver CF provides breathing air for 10 or 15 minutes, according to cylinder size and is fully approved to EN1146 (2005), Lloyds Register Certificate of Fire Approval and Lloyds Register Certificate of Type Approval. The Dräger Saver CF also complies with SOLAS Chapter II-2, The Marine Equipment  Directive and The Pressure Equipment Directive.

Important features of the Dräger Saver CF include:
– Low cost of ownership
– No mandatory routine service is required for a period of 10 years (or according to local regulations).
– The cylinder can be charged using standard charging connectors with no special tools or adaptors.

Size (L x W x H) (mm) 490 x 160 x 250
Cylinder Free Capacity (litres) 400
Cylinder Water Capacity (litres) 2
Maximum Working Pressure (bar) 200
Medium Pressure (bar) 5
Airflow to Hood (bar) 35-37
Operating Temperature Range (°C) -15 to +60
